Why Your Gasketed Plate Heat Exchanger Might Be Leaking

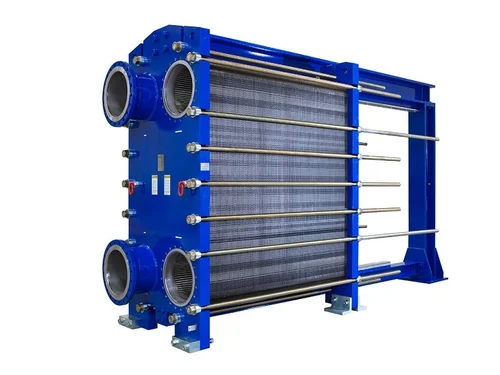

 A gasketed plate heat exchanger is a vital piece of equipment in many industrial processes, helping to transfer heat between two fluids efficiently. However, like any machinery, it is susceptible to wear and tear. One of the most common issues faced by operators is leakage. If you’re experiencing leaks with your gasketed plate heat exchanger, understanding the potential causes can help in preventing further damage and maintaining optimal performance. This blog will explore the common reasons why a gasketed plate heat exchanger might be leaking, along with steps you can take to diagnose and resolve the issue.

1. Deterioration of Gaskets

The most common cause of leaks in a gasketed plate heat exchanger is the deterioration of the gaskets. Gaskets are essential components that seal the plates and prevent fluids from mixing or leaking out. Over time, gaskets can deteriorate due to several factors:

• Aging: Natural aging of gasket material can cause it to become brittle and lose its elasticity. When gaskets age, they may crack or harden, leading to leaks.
• Chemical Exposure: Certain chemicals can react with the gasket material, causing it to degrade. This is especially common in applications where aggressive chemicals are used.
• Temperature Fluctuations: Extreme temperature changes can cause the gaskets to expand and contract, leading to material fatigue and leaks.

Solution: Regular inspection and maintenance are crucial to prevent gasket deterioration. Replacing gaskets periodically, based on manufacturer recommendations, can help avoid leaks and prolong the lifespan of the heat exchanger.

2. Improper Installation or Assembly

Improper installation or assembly of the plates and gaskets can result in leaks. If the plates are not aligned correctly or if the gaskets are not seated properly, the seal may not be tight enough to prevent leakage.

• Misalignment of Plates: If plates are not correctly aligned during assembly, gaps may form, leading to leaks.
• Incorrect Gasket Placement: Placing the gasket incorrectly can compromise the seal, allowing fluids to escape.
• Over-tightening or Under-tightening Bolts: Incorrect torque settings can either compress the gaskets too much or too little, both of which can lead to leaks.

Solution: Ensure that assembly and installation are carried out by trained professionals who follow the manufacturer's guidelines for torque settings, plate alignment, and gasket placement.

3. Mechanical Damage to Plates

Another reason for leaks in a gasketed plate heat exchanger is mechanical damage to the plates themselves. Plates can suffer from damage due to various factors:

• Corrosion: Corrosion can occur due to exposure to aggressive fluids or improper material selection. This can lead to pinhole leaks in the plates.
• Erosion: High-velocity fluids can cause erosion of the plate material over time, leading to thin spots and potential leaks.
• Physical Impact: External impacts during maintenance or handling can dent or damage the plates, compromising the seal and causing leaks.

Solution: Inspect the plates regularly for signs of corrosion, erosion, or physical damage. Replace any damaged plates promptly to prevent leaks and maintain efficiency.

4. Thermal Stress and Expansion

Thermal stress is another culprit that can cause leaks in a gasketed plate heat exchanger. When a heat exchanger is subjected to rapid or extreme temperature changes, the metal plates expand and contract. This can lead to:

• Thermal Fatigue: Repeated thermal cycling can cause metal fatigue, potentially resulting in cracks or leaks.
• Gasket Failure: Extreme temperature changes can cause gaskets to lose their elasticity or crack, compromising the seal.

Solution: Gradually ramp up temperatures to avoid sudden thermal shocks. Use materials that can withstand the thermal demands of your specific application to reduce the risk of leaks.

5. Fouling and Scaling

Fouling and scaling can lead to leaks by creating uneven surfaces on the plates where the gaskets sit. This can prevent the gaskets from forming a proper seal, causing leaks to develop over time.

• Scaling: Mineral deposits from hard water can build up on the plates, affecting heat transfer efficiency and sealing.
• Fouling: Accumulation of biological matter or debris can create uneven surfaces that compromise gasket seals.

Solution: Implement a regular cleaning schedule to remove scale and fouling. Chemical cleaning agents or mechanical cleaning methods can help maintain the efficiency and integrity of the heat exchanger.

6. Operational Pressure Surges

Pressure surges or spikes can also cause leaks in a gasketed plate heat exchanger. If the system pressure exceeds the design limits, it can put excessive force on the gaskets and plates, leading to leaks.

• Water Hammer: Sudden pressure changes, such as those caused by water hammer, can displace gaskets and cause leaks.
• Pressure Spikes: Uncontrolled pressure spikes can damage the gaskets or plates, leading to system leaks.

Solution: Install pressure relief valves and dampeners to manage pressure fluctuations. Ensure that the system operates within the recommended pressure range to prevent gasket and plate damage.

7. Incompatible Fluids

The use of incompatible fluids can also lead to leaks. Fluids that are too corrosive for the materials of the gasketed plate heat exchanger can cause rapid deterioration of both the plates and gaskets.

• Material Compatibility Issues: Choosing the wrong materials for plates and gaskets can lead to chemical reactions, causing leaks.
• Incorrect Fluid Handling: If the fluids being processed are not handled properly, they may lead to corrosion, erosion, or damage to the gaskets and plates.

Solution: Select the right materials for both plates and gaskets that are compatible with the fluids being processed. Consulting with experts or referring to material compatibility charts can help avoid potential issues.

8. Wear and Tear Over Time

All equipment, including gasketed plate heat exchangers, undergoes wear and tear over time. The continuous operation of the heat exchanger, especially under challenging conditions, will eventually lead to leaks if not properly maintained.

• Aging Equipment: Over time, components like gaskets, plates, and frames wear out, making leaks more likely.
• Lack of Maintenance: Skipping routine maintenance checks and ignoring early signs of wear can exacerbate the problem.

Solution: Regular maintenance is crucial to extending the life of your heat exchanger. Conduct scheduled inspections and address any signs of wear or potential leaks immediately.

Conclusion

A gasketed plate heat exchanger is a valuable component in many industrial processes, but it requires proper maintenance and care to function optimally. Leaks can occur due to various reasons, including gasket deterioration, improper installation, mechanical damage, thermal stress, fouling, pressure surges, incompatible fluids, and general wear and tear. By understanding these potential causes and implementing the right solutions, you can prevent leaks, maintain efficiency, and prolong the lifespan of your gasketed plate heat exchanger.

Whether you are dealing with a standard unit or a custom heat exchanger, being proactive about maintenance and repairs will save you time and money in the long run. Regular inspections, appropriate material selection, and proper installation are key to avoiding leaks and ensuring your equipment operates at its best.
